3DOF Champion Motion System
- Gross Weight: 36kg or 79lbs
- Net Weight: 32kg or 68lbs
- Thrust force: 60kg (Single actuator )
- System Payload: 240kg
Download Specification of Champion
Download 3D/PDF Drawing for Champion
$5,500.00
Technical Specifications of the Champion
- PTA CANBus All in One Simulator Motion Controller (one year warranty) 1pc
- PTA-E Stop button ( 3.5mm Audio cable inside ) (optional)
- PTA-Champion Multiple in One Metal Cabinet driven box for Champion Actuator 1pc
- All Shield PTA DC48V CANBus Servo system(flange size 60 with 600w / 1 year warranty) 4pcs
- Actuator captive floor cups 4 pcs

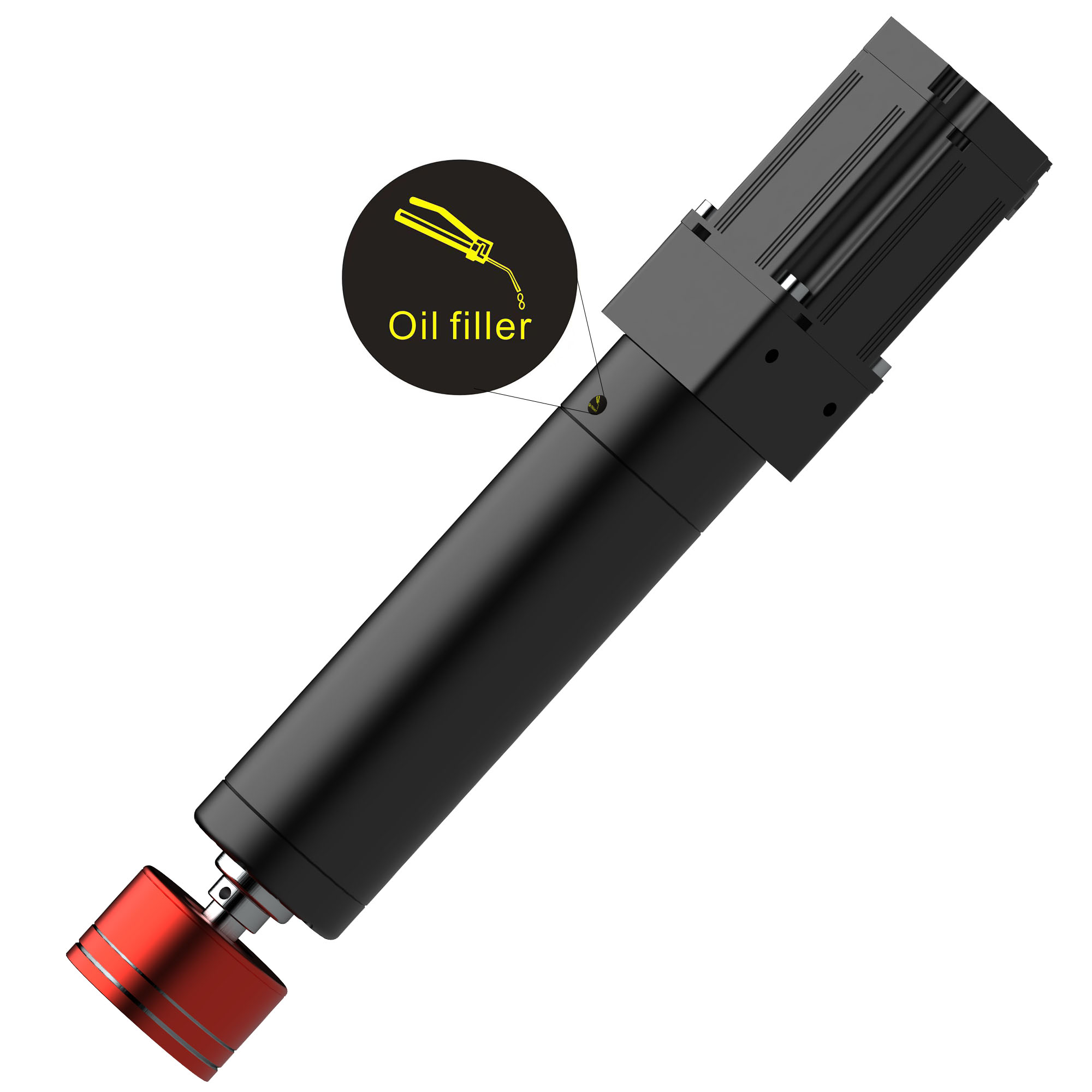

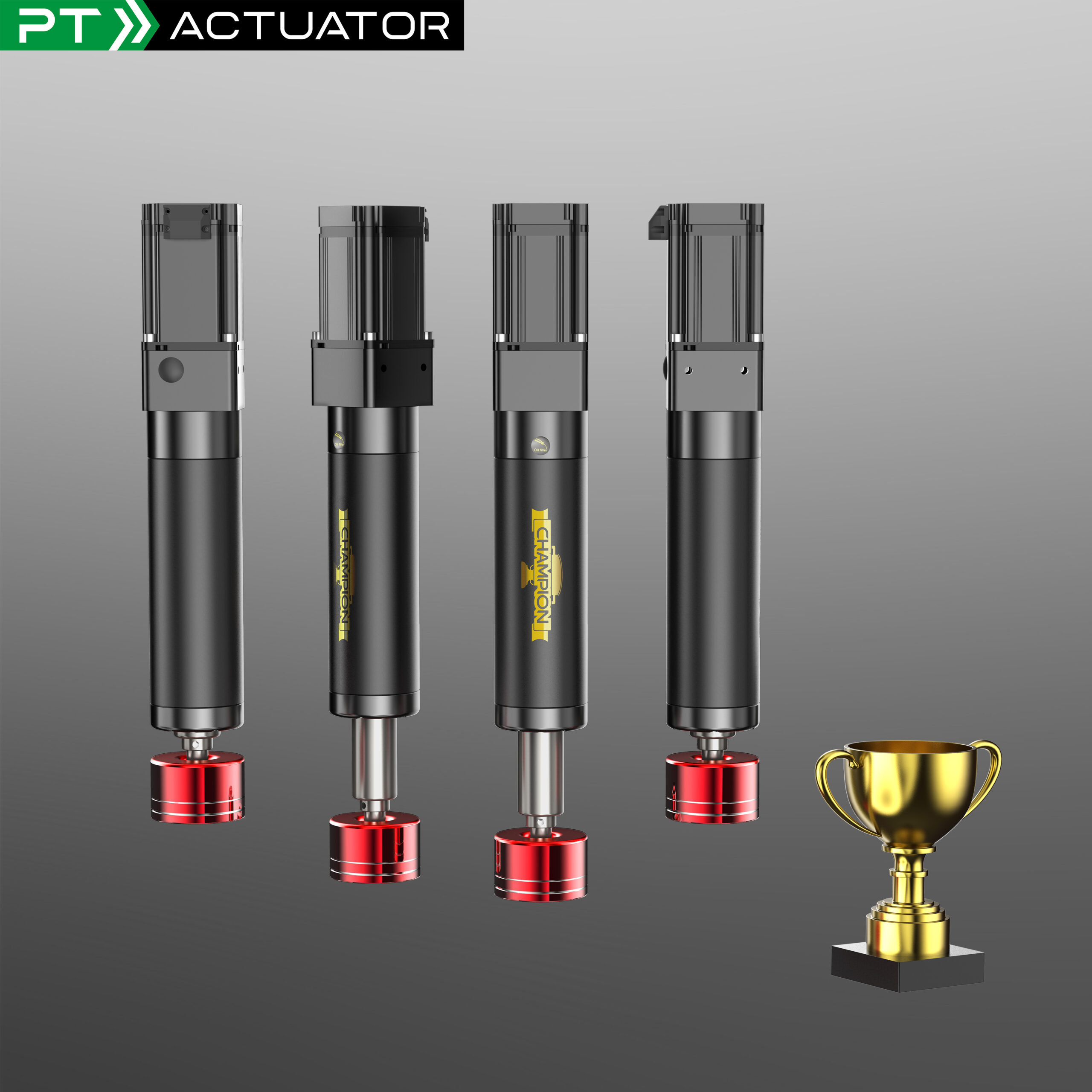

- Champion actuators (Speed:300mm/s, Force:60kg, Stroke:75mm/3inches/ 3 years warranty) 4pcs
- PTA universal power tranformer AC110V-220V to DC48V 2000W Active coolant fans /1 year warranty

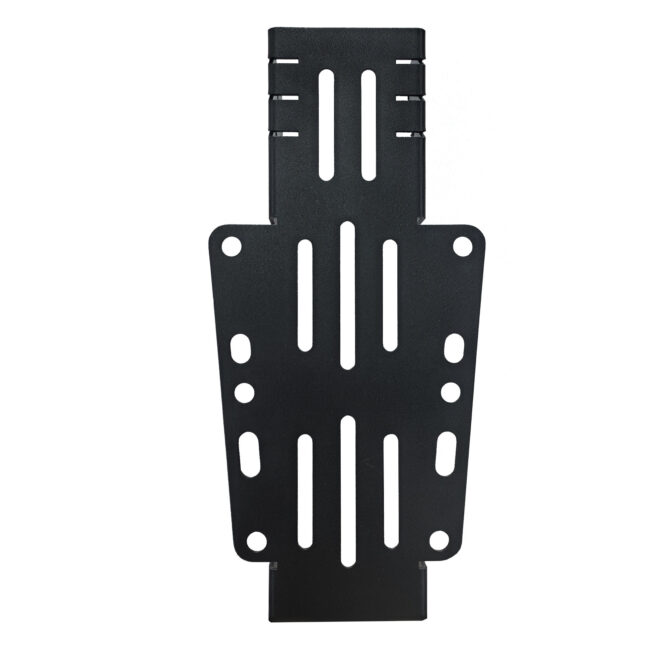

- Champion actuator mounting brackets for sim racing/flight rig/cockpit ( Rhino GT Logo ) 4 pcs
- Power&Encoder cables (1.5 meters/ 4.92 feet ) 2pcs
- Power&Encoder cables (2.5 meters/ 8.20 feet ) 2pcs
- PTA-SimHub Valid Credit 1pc ( Firmware updates is needed to support the other Apps)
- Total price :5500 USD (Includes shipping/duties.)
Note: The following areas are eligible for DDP service (door to door delivery and custom clearance tax included).
Asia: Taiwan, Japan, Singapore, Malaysia, Indonesia, Philippines, India, Sri Lanka, United Arab Emirates, Russia, Thailand
The Americas: The United States, Mexico, Canada
Europe: United Kingdom, Germany, France, Italy, Spain, Belgium, Netherlands, Luxembourg, Austria, Poland, Czech Republic, Slovakia, Slovenia, Denmark, Finland, Sweden, Portugal, Hungary, Greece, Ireland, Lithuania, Bulgaria, Estonia, Croatia, Latvia
Australia: Australia, New Zealand
Countries or regions not listed above need to be consulted separately
