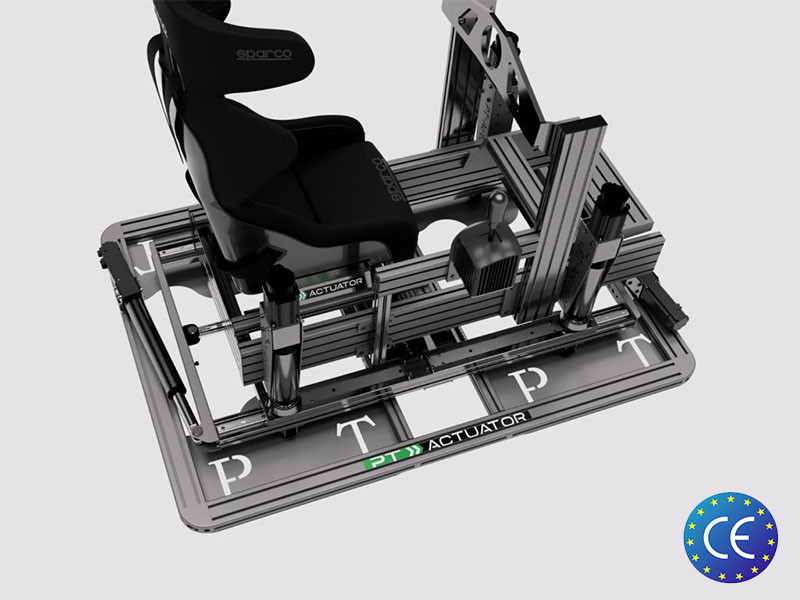

Motion Dragon 6DOF GT

  Platform Motion Dragon 6DOF GT

      (110v ~220v World wide)

  Hardware List

• • 1 set of PTA controller
  • 4 set of shield PTA servo driver (flange size 80 with 750w) ( 3 years super long- term warranty )
  • 3 set of shield PTA servo driver (flange size 60 with 600w) for traction loss and surge ( 3 years super long- term warranty )
  • 4 set of metal plate cups
  • 4 set of Scorpion S servo actuators (speed:250mm/s, force:200kg, stroke/150mm) perpendicular ( 3 years super long- term warranty )
  • 2 sets of baby monster actuator ( speed:250mm/s,force:80kg,stroke/ 250mm) for front and rear TL ( 3 years super long- term warranty )
  • 1 set of servo actuator (speed:250mm/s, force:80kg, stroke/250mm) for Surge ( 3 years super long- term warranty )
  • 1 set of Motion Base”Motion Dragon GT” (Aluminum profile+Metal structure) Support for profiles model 40/40, 40/80, 40/160
  • 4 sets of Scorpion series mounting bracket for sim racing rig/chassis adding TL and Surge brackets
  • 7 set of power and encoder cables (3meters long)
  • 1 set of metal housing for driver system
  • PTA-SRS License included
  • 1 set of E- stop button ( Lan CAT6 cable. Length:2m )
  • 1 set of PTA Belt TensionR

• 1 set of Tower for TensionR

The finalized and live video link for the Dragon Assembly video: https://www.youtube.com/watch?v=VcZFkXurwCA&ab_channel=SimMotionTuning

Download Parts List for Motion Dragon GT
