PT Active Belt Tensioner Pro

Feel the power of G-forces like never before with an exceptional level of realism created by the Belt Tension R Tower.
Home > Products > PT Active Belt Tensioner Pro

PT Active Belt Tensioner Pro

Feel the continuous gravity of the ground.

TensionR™ Pro adds additional real sense to the ultimate racing or flight experience.

Statement：From January 1, 2024, the color is upgraded to green！
Belt Tension R Pro is coming soon, please stay in tune!



$999.00 – $1,499.00

Product
specs

Parts and sizing

It comes with a 5 point belt system and it’s fully integrated with Sim Racing Studio software for an easy,plug-and-race/fly experience

  • Product Weight (lbs): 18.74
  • Length (Inches): 23.62
  • Width (Inches): 8.66
  • Height (Inches): 8.66

Download Drawing of the Belt Tension R & Pro and Parts

                                                             Package List:  Belt Tension R    VS    Belt Tension R Pro
Belt Tension R Belt Tension R Pro
Main unit - 1set Main unit - 1set
Mounting Brackets - 1set Mounting Brackets for Simulator rig - 1set（optional）
Power transformer 24VDC 15Amps - 1set Power Adaptor 24VDC 10A IP20 - 2sets
Power line with AC power socket - 1set AC/DC Adapter 110-240Vac 50/60Hz
Power line with AC power socket - 2sets
USB-B Cable - 1set USB-B Cable - 2 meter 1set
5 Points buckle belts ( 2 inches with green ) - 1set 5 Points buckle belts ( 2 inches with dark green ) - 1set



Technical specification
Belt Tension R Belt Tension R Pro
Max. pull force: 15kg Max. pull force: 12kg each channel X 2
Max. acceleration: 380mm/ms Rated working speed: 500mm/s
CP2102 Bridge of Driver USB-serial chip : FTDI driver
Working sound level : <45dB ( Testing environment: 1 meter distance )
Full stroke: 381mm /15 inches
Third party strap connections: (optional)

 PTA TensionR Pro Self-made hard-stop for safety.

Statement: The color of the belts will be upgraded to green ones from Jan. 1st,2024 !

Product
models

Find the right fit for your perfect simulation experience

PT Active Belt Tensioner Pro + Tower

$1499
Add to cart

PT Active Belt Tensioner + Tower

$1149
Add to cart

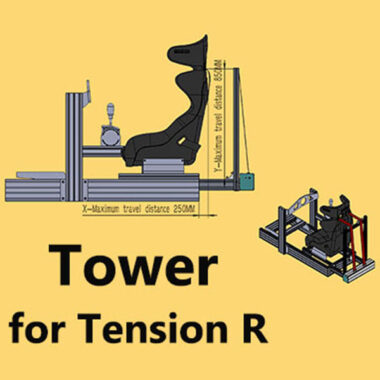

Belt Tension R Tower

$349
Add to cart
