Scorpion Actuator Kits
Are you looking for a heightened immersive simulation that puts you into the driver’s seat? Look no further. Our simracing motion platforms offer a flexible, realistic simulation experience.
With multiple product sets and accessories, there is an immersive simracing motion platform for everyone – from racing to flight enthusiasts and more.
$3,999.00 – $13,199.00
Product
models
Find the right fit for your perfect simulation experience
Product
specs
Scorpion E (Experience)
Scorpion S (Super)
Scorpion C (Commercial)
Scorpion U (Ultimate)
Scorpion E (Experience)
- Product Weight (lbs): 136
- Length (Inches): 24
- Width (Inches): 18
- Height (Inches): 18
|
3 DOF SCORPION E Actuator which mounted perpendicular
( AC110V~220V World Wide )
|
||
| Hardware list | 3 Actuators | 4 Actuators |
| AMC-AASD15A controller | 1pc | 1pc |
|
Shield AASD15A-PLUS servo driver (flange size 80 with 750w) ( 3 years super long- term warranty ) |
3pcs | 4pcs |
| Floor contact cups | 3pcs | 4pcs |
|
Servo Scorpion actuators
(speed:250mm/s,force:200kg,stroke:100mm/3.94 inches)
Ball screws: TBI (Made in Taiwan, China )
( 3 years super long- term warranty ) |
3pcs | 4pcs |
| U brackets ( PT LOGO ) | 3pcs | 4pcs |
| Power and encoder cables (3meters long) | 3pcs | 4pcs |
|
Software: Sim Racing Studio （Preferred）/ Simtools V2 Edition (Optional)
|
N | Y |
|

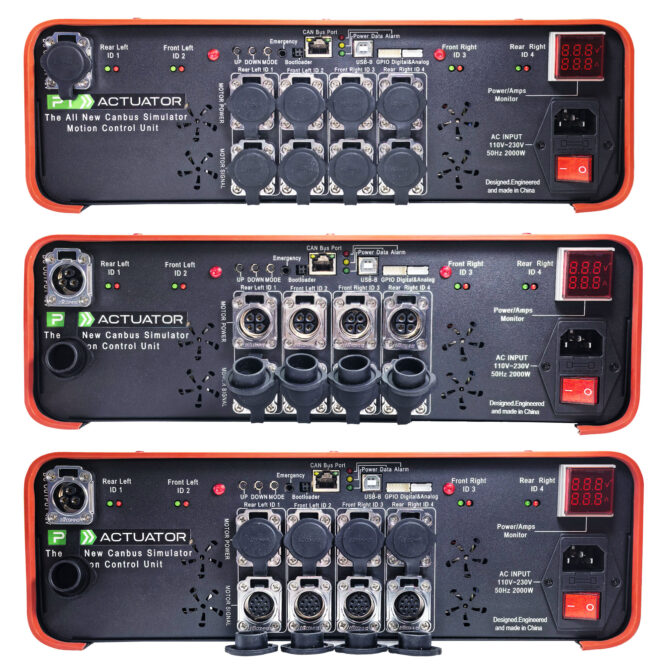

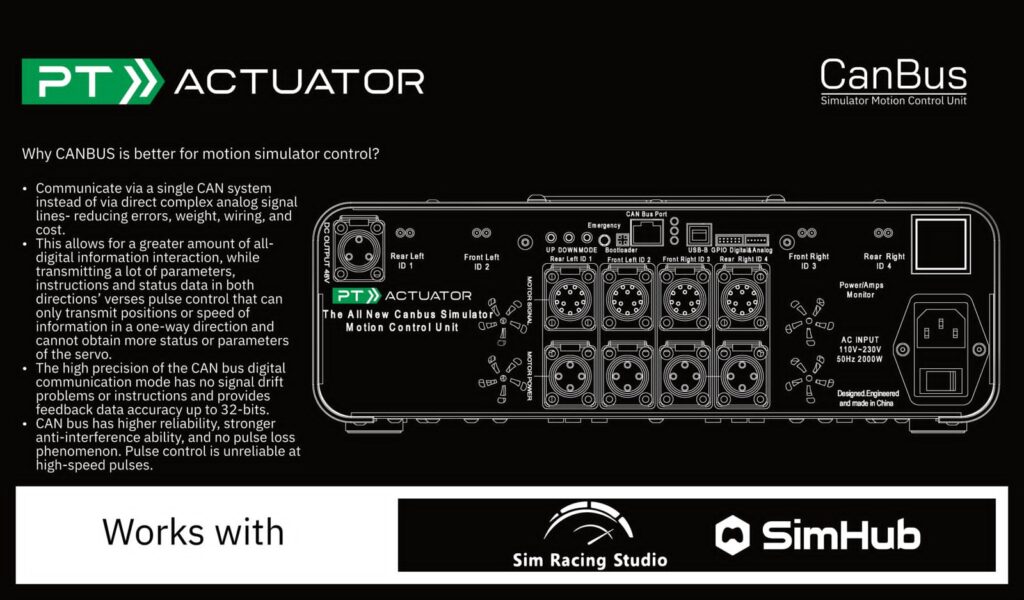

All pre-wired Metal Housing for the servo driver and controller system |
Y | Y |
| Price ( USD ): FOB Shanghai | 3,999 | 4,999 |
| Memo: Resale or used PT products are not covered by the warranty | ||
Dynamic Curve Display of Scorpion “E”
| Supply | |||||
| Parameter | Notes | Min | Typ | Max | Unit |
| Supply Voltage(Vcc) | 100 | 220 | 240 | V | |
| Peak Supply Current | Vcc=220V | 10 | A | ||
| Sustained Supply Current | Passive cooling | 3.4 | |||
| Power Consumptions #1 | 3 Actuators | 1 | 2.25 | Kw | |
| Power Consumptions #2 | 4 Actuators | 1.3 | 3 | Kw | |
| Force | |||||
| Peak Force | Vcc=220V | 4000 | N(lbf) | ||
| Max Sustained Force | Passve cooling | 2000 | N(lbf) | ||
| Linear Motion Accuracy | |||||
| Resolution | Pulse control | 0.01 | mm | ||
| Refresh Rate | 1 | ms | |||
| Speed | |||||
| 100% Force | Acc=220V | 250 | mm/s | ||
| Frequency Response Internal | Internal pulse control | μm | |||
| Frequency Response External | External control loop via USB | μm | |||
| Protection | |||||
| Over-voltage | 260V | ||||
| Over-Stroke | Inside high precision torque detector | ||||
| Over-temperature | Firmware current limiting | ||||
| Building Materials | |||||
| Parameter | Description | ||||
| Actuator Housing | Anordize aluminum color black | ||||
| Actuator Building Material | GB/LD2 JIS/A6061 B.S/6061 SAE/6061 DIN/ALMg1SiCu | ||||
| Ball Screws | China Taiwan (TBI) | ||||
| Piston Rod | Cardon steel surface hardcoat | ||||
| Cable | Aviation/Cannon plugs | ||||
| Characteristics | |||||
| Stroke | 100 | mm | |||
| IP Rating | IP54 ( Home Use Only) | ||||
| Piston Rod Dia. | 50 | mm | |||
Scorpion S (Super)
- Scorpion S provides extra range and acceleration speed. With a stroke of 150mm and acceleration of up to 500 m/s, you can now achieve higher degrees of movement to enhance your experience while racing, rallying or flying.
- Product Weight (lbs): 141
- Length (Inches): 24
- Width (Inches): 18
- Height (Inches): 18
|
3 DOF SCORPION S Actuator which mounted perpendicular
( AC110V~220V World Wide )
|
||
| Hardware list | 3 Actuators | 4 Actuators |
| AMC-AASD15A controller | 1pc | 1pc |
| Shield AASD15A -PLUS servo driver (flange size 80 with 750w) ( 3 years super long- term warranty ) | 3pcs | 4pcs |
| Floor contact cups | 3pcs | 4pcs |
|
Servo Scorpion actuators
(speed:250mm/s,force:200kg,stroke:150mm/5.91 inches)
Ball screws: TBI ( Made in Taiwan, China ) ( 3 years super long- term warranty )
|
3pcs | 4pcs |
| Scorpion series U brackets ( PT-Actuator LOGO ) | 3pcs | 4pcs |
| Power and encoder cables (3meters long) | 3pcs | 4pcs |
|
Software: Sim Racing Studio （Preferred）/ Simtools V2 Edition (Optional)
|
N | Y |
|
All pre-wired Metal Housing for the servo driver and controller system |
Y | Y |
| Price ( USD ): FOB Shanghai | 5,399 | 6,499 |
| Memo: Resale or used PT products are not covered by the warranty | ||
Scorpion C (Commercial)
- Scorpion C with 250mm stroke(THK Screw)/Scorpion C with 300mm stroke(THK Screw)
- Product Weight (lbs): 168/198
|
3 DOF SCORPION C Actuator which mounted perpendicular
( AC110V~220V World Wide )
|
|
| 4 Actuators Hardware list | |
| AMC-AASD15A controller | 1pc |
| Shield AASD15A -PLUS servo driver (flange size 80 with 1.2kw) ( 3 years super long- term warranty ) | 4pcs |
| Captive cups | 4pcs |
|
Servo Scorpion actuators(speed:250mm/s,force:250kg,stroke:200mm/7.87 inches) Ball screws: THK ( Made in Japan ) ( 3 years super long- term warranty ) |
4pcs |
| Scorpion series U brackets ( PT-Actuator LOGO ) | 4pcs |
| Power and encoder cables (3meters long) | 4pcs |
| Software: Sim Racing Studio （Preferred）/ Simtools V2 Edition (Optional) | Y |
| All pre-wired Metal Housing for the servo driver and controller system | Y |
| Price ( USD ): FOB Shanghai | 10,499 |
|
3 DOF SCORPION C Actuator which mounted perpendicular
( AC110V~220V World Wide )
|
|
| 4 Actuators Hardware list | |
| AMC-AASD15A controller | 1pc |
| Shield AASD15A-PLUS servo driver (flange size 80 with 1.2kw) ( 3 years super long- term warranty ) | 4pcs |
| Captive cups | 4pcs |
|
Servo Scorpion actuators(speed:500mm/s,force:200kg,stroke:300mm/11.81 inches) Ball screws: THK ( Made in Japan ) ( 3 years super long- term warranty ) |
4pcs |
| Scorpion series U brackets ( PT-Actuator LOGO ) | 4pcs |
| Power and encoder cables (3meters long) | 4pcs |
| Software: Sim Racing Studio （Preferred）/ Simtools V2 Edition (Optional) | Y |
| All pre-wired Metal Housing for the servo driver and controller system | Y |
| Price ( USD ): FOB Shanghai | 13,199 |
| Memo: Resale or used PT products are not covered by the warranty | |
Parts and sizing
- Scorpion U with 450mm stroke(THK Screw) / Option A: In line type, Option B: Foldback type
- Product Weight (lbs):452
|
6DOF Scorpion U Stewart platform hardware list: ( AC110V~220V World Wide ) |
| 1 set of AMC-AASD15A controller |
| 6 set of power and encoder cable (3meters long) |
| ( 3 years super long- term warranty ) |
|
6 set of shield AMC-AASD15A-PLUS servo driver(motor:750W, flange size:80, speed:3000rpm ) ( 3 years super long- term warranty ) |
| 12 set of heavy duty universal joints( which used to upper and below platforms) |
| Software: Sim Racing Studio （Preferred）/ Simtools V2 Edition (Optional) |
| Price (USD ) FOB Shanghai : |
| Memo: Resale or used PT products are not covered by the warranty |
