Basic technical specification of the BeltForce:

Power Source: 5A/115VAC, 2.5A/230VAC
Rated Power: 480 W
Metal control housing physical interface:USB-B
BeltForce driven channel: 2(Left + Right)
Pulling Force: Rated 12kg/Peak17kg (3seconds) / Rated26.45lbs/Peak 37.48lbs(3seconds) per channel

Storage Temperatures: +5'C to +55°C
LED1(Harness tower）: Twin channel of full RGB at harness tower
Supported Effects: Turn left, turn right, brake, reverse , emergency flahsing
LED2(Power Control Unit) Full RGB effect of 358 digital modes by Blueteeth App of Smart Phone

Maximum Length of USB-B Cable: 2m

MAIN DEVICES DIMENSIONS:

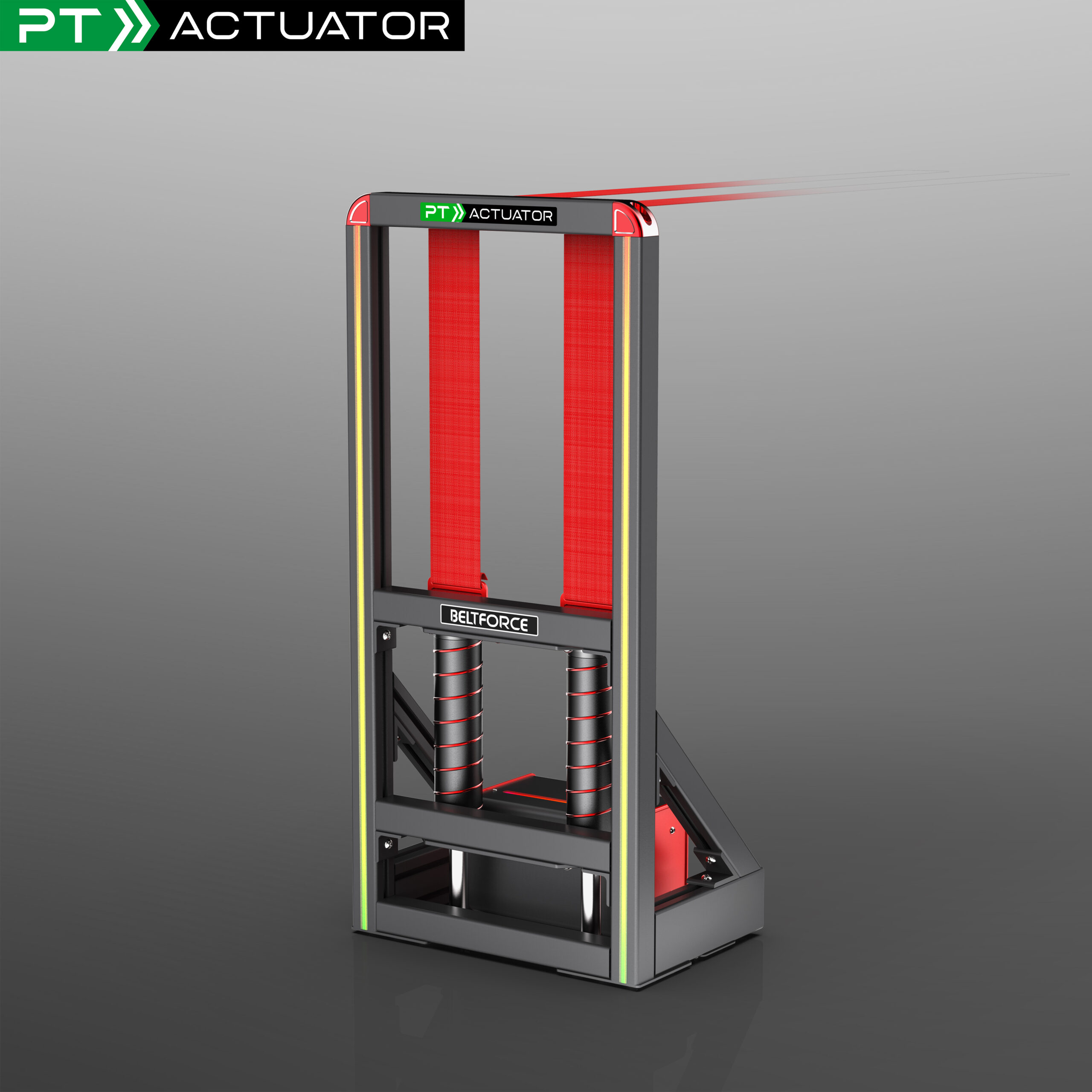

(BeltForce Body)
Main Dimensions:
60 x 260mm/2.36 X 10.24 inches
Electromagnetic actuator Self-weight: 3kg/6.6 lbs

Power Control Unit Weight: 19 kg/41.8 lbs
（Harness Tower inside）

Accessory：E-stop button

PACKAGING DETAILS:

Packing Box Dimensions: 900 x 200 x 200 mm * 2/ 35.4 x 7.9 x 7.9 inch * 2

Packing Box Weight: 25 kg/ 55.1 lb

Software : SimHub or PT-Actuator SDK open source development
