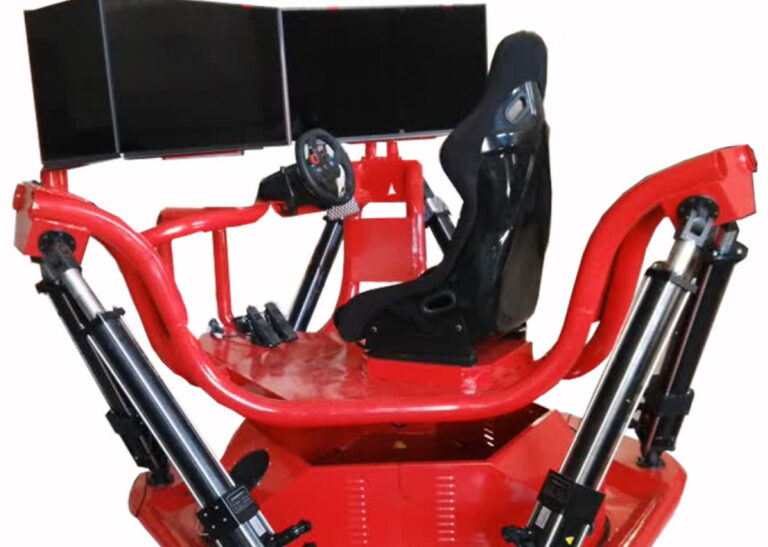

Stewart motion platform
An immersive platform with adjustable levels of speed and force.
Product
models
Find the right fit for your perfect simulation experience
6DOF With Rotation Plate Motion Platform Kits 6D-03
Product
specs
Product Specs: We typically have two types of the actuators with both stroke 450mm, but they are direct inline and foldback. For foldback actuators, the biggest advantages are pulley and gear transmissions, we are flexible to adjust the speed and force based on limited motor watts, and of course, it will also be a little lower by its fully body dimension compared with direct inline ones.

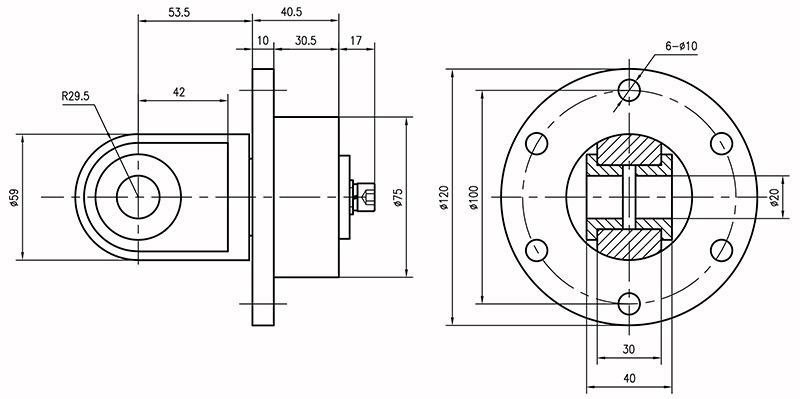

A lot of guys are interested on the 6dof, cause it could make flight sims much more immersive, with this great demand, we are open to share 2 kinds of classical design of 6DOF sunken type platforms. You can download the pdf file listed below, check the dimensions, where to fixed the universal joints, what's the best CG dimension, and motion platform radius,etc. This will make complicated work much more easy to achieve.
If you guys want heavy-duty or customized motion platforms, please let us know, PT-Actuator is free to provide you a constructive/practical solution.
Parts and sizing
- 1 set of PTA controller
- 6 set of power and encoder cable (3 meters long)
- 6 set of PT2510 servo actuators ( speed:500mm/s,force:150kg,stroke/450mm)
- Option A: Inline type / Option B: Foldback type ( 3 years super long- term warranty )
- 6 set of shield PTA servo driver(motor:750W, flange size:80, speed:3000rpm ) ( 3 years super long- term warranty )
- 12 set of heavy duty universal joints( which used to upper and below platforms)
- Price ( USD ) : 12,999USD ( VAT Included )
- Supported Software: Fly PT & Ian 6DOF BFF
- Memo: Resale or used PT products are not covered by the warranty
Inline-PT2510L300-model-universal-joint Download PDF
Inline-PT2510L400-model-universal-joint Download PDF
Inline-PT2510L300-model-universal-joint Download 3D File
Inline-PT2510L400-model-universal-joint Download 3D File
Parts and sizing
- 1 set of PTA controller
- 1 set of motion platform(upper platform+below platform by Hexpod, Radius: 500mm~800mm)
- 6 set of power and encoder cable (3meters long)
- 6 set of PT2510 servo actuators ( speed:250mm/s,force:250kg,stroke/300mm)
- Option A: Inline type / Option B: Foldback type ( 3 years super long- term warranty )
- 6 set of shield PTA servo driver(motor:1500W, flange size:110, speed:2000rpm ) ( 3 years super long- term warranty )
- 12 set of heavy duty universal joints( 6set of horizontal and 6set for perpendicular )
- 3 years long-term warranty for actuators and drivers
- Price ( USD ) : 18,000USD ( VAT Included )
- Supported Software：Fly PT & Ian 6DOF BFF
- Memo: Resale or used PT products are not covered by the warranty
Foldback-PT2510L400-model-universal-joint Download PDF
Foldback-PT2510L400-model-universal-joint 3D File
Parts and sizing
- 1 set of PTA controller
- 1 set of heavy duty rotation plate ( CW/CCW without any mechanical transmission restrictions)
- 1 set of motion platform(upper platform+below platform by Hexpod, Radius: 500mm~800mm)
- 6 set of power and encoder cable (3meters long)
- 6 set of PT2510 servo actuators ( speed:250mm/s,force:250kg,stroke/300mm)
- Option A: Inline type / Option B: Foldback type ( 3 years super long- term warranty )
- 6 set of shield PTA shield servo driver(motor:1500W, flange size:110, speed:2000rpm )
- ( 3 years super long- term warranty )
- 12 set of heavy duty universal joints( 6set of horizontal and 6set for perpendicular )
- Price ( USD ) : 30,499USD~50,499USD ( VAT Included )
- Supported Software：Fly PT & Ian 6DOF BFF
- Memo: Resale or used PT products are not covered by the warranty
6DOF-Stewart-Motion-Platform-Kits-6D-03-1 Download PDF
6DOF-Stewart-Motion-Platform-Kits-6D-03-2 Download PDF
